項目規格參數相對孔徑 (F No.)1.8焦距(Focal-Length)3光學后焦 (Optical Back Focal Length)4.8最大像面大小（MAX Image circle)?7mm鏡片構成（Lens structure)6G接口 (Mount )M12*0.5視場角(FOV )SensorD(對角)°H(水平)°V(垂直)°1/2.9 1080P13011363畸變（TV
| 項目 | 規格參數 | |||
| 相對孔徑 (F No.) | 1.8 | |||
| 焦距(Focal-Length) | 3 | |||
| 光學后焦 (Optical Back Focal Length) | 4.8 | |||
| 最大像面大小（MAX Image circle) | ?7mm | |||
| 鏡片構成（Lens structure) | 6G | |||
| 接口 (Mount ) | M12*0.5 | |||
| 視場角(FOV ) | Sensor | D(對角)° | H(水平)° | V(垂直)° |
| 1/2.9 1080P | 130 | 113 | 63 | |
| 畸變（TV Distortion) | 10% | |||
| 相對亮度（Relative illumination) | >60% | |||
| 最大主光線夾角（CRA) | 12° | |||
| 光學總長（Total Length) | 22.4 | |||
| 操作溫度 (Operating temperature) | -20℃~+80℃ | |||
| IP防護等級：IP | Tavg>=88% @420-600nm | T=50% @650±10nm | Tavg<=5% @700-1050nm | |

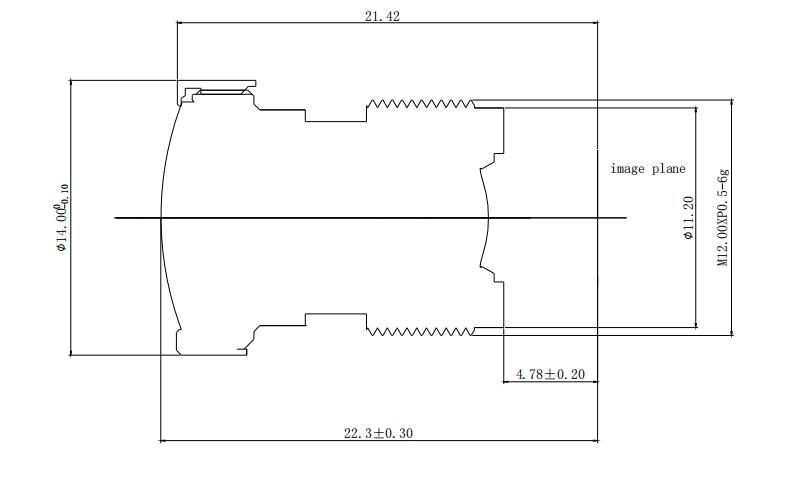

| 尺寸圖 |
| |||
